· 尺寸：5.0mm×5.4mm
· 波長: 365/385/395/405nm
· 高輻射通量，輻射功率400-800mW (IF=500mA)
· 發(fā)光角度120°
· 瞬間點亮（小于100ns）
· 散熱效率高
· 好的靜電防護能力
· 壽命長，RoHS標準
付款方式： 30%定金，余款發(fā)貨前付清。
交期： 10000pcs以內(nèi)，5天交貨。 1
0000到10萬pcs,10天交貨
10萬到50萬pcs15天交貨。
超過50萬pcs，面擬
· UV 固化
· UV 印刷
· UV 曝光
· 美甲燈
· 防偽
· 滅蚊燈
Device Selection Guide
|
Emitting Color |
Lens Type |
|
Purple |
------ |
Absolute Maximum Ratings at Ta=25℃
|
Parameter |
Symbol |
Max |
Unit |
|
Power Dissipation |
Pd |
500 |
mW |
|
Peak Forward Current 1/10 Duty Cycle,0.1ms Pulse Width |
IFP |
200 |
mA |
|
Forward Current |
IF |
150 |
mA |
|
Reverse Voltage |
VR |
5 |
V |
|
Operating Temperature Range |
Topr |
-40℃ to+100℃ |
|
|
Storage Temperature Range |
Tstg |
-40℃ to+100℃ |
|
|
Electrostatic Discharge(HBM) |
ESD |
1000 |
V |
l Condition : 1/10 duty, 10msec width.
l ** LED allowable pressure value during SMT process.

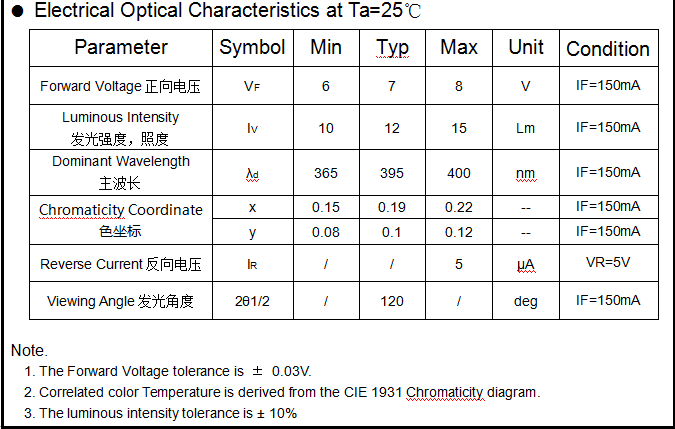

l Electrical Optical Characteristics at Ta=25℃
|
Parameter |
Symbol |
Min |
Typ |
Max |
Unit |
Condition |
|
Forward Voltage |
VF |
6 |
7 |
8 |
V |
IF=150mA |
|
Luminous Intensity |
IV |
10 |
12 |
15 |
Lm |
IF=150mA |
|
Dominant Wavelength |
λd |
--- |
--- |
--- |
nm |
IF=150mA |
|
Chromaticity Coordinate |
x |
0.18 |
0.2 |
0.22 |
-- |
IF=150mA |
|
y |
0.14 |
0.16 |
0.18 |
-- |
IF=150mA |
|
|
Reverse Current |
IR |
/ |
/ |
5 |
μA |
VR=5V |
|
Viewing Angle |
2θ1/2 |
/ |
120 |
/ |
deg |
IF=150mA |
Note.
1. The Forward Voltage tolerance is ± 0.03V.
2. Correlated color Temperature is derived from the CIE 1931 Chromaticity diagram.
3. The luminous intensity tolerance is ± 10%
